KalamDB Admin UI Guide

The Admin UI gives you one place to run SQL, inspect namespaces/tables, monitor jobs, review logs, and manage settings.

Access the UI

Open:

http://localhost:8080/ui/sql

If you are not authenticated, KalamDB redirects to the login page.

Sign in

Use an account with DBA or system privileges.

For your local environment:

• Username: admin
• Password: kalamdb123

After login, you land in SQL Studio.

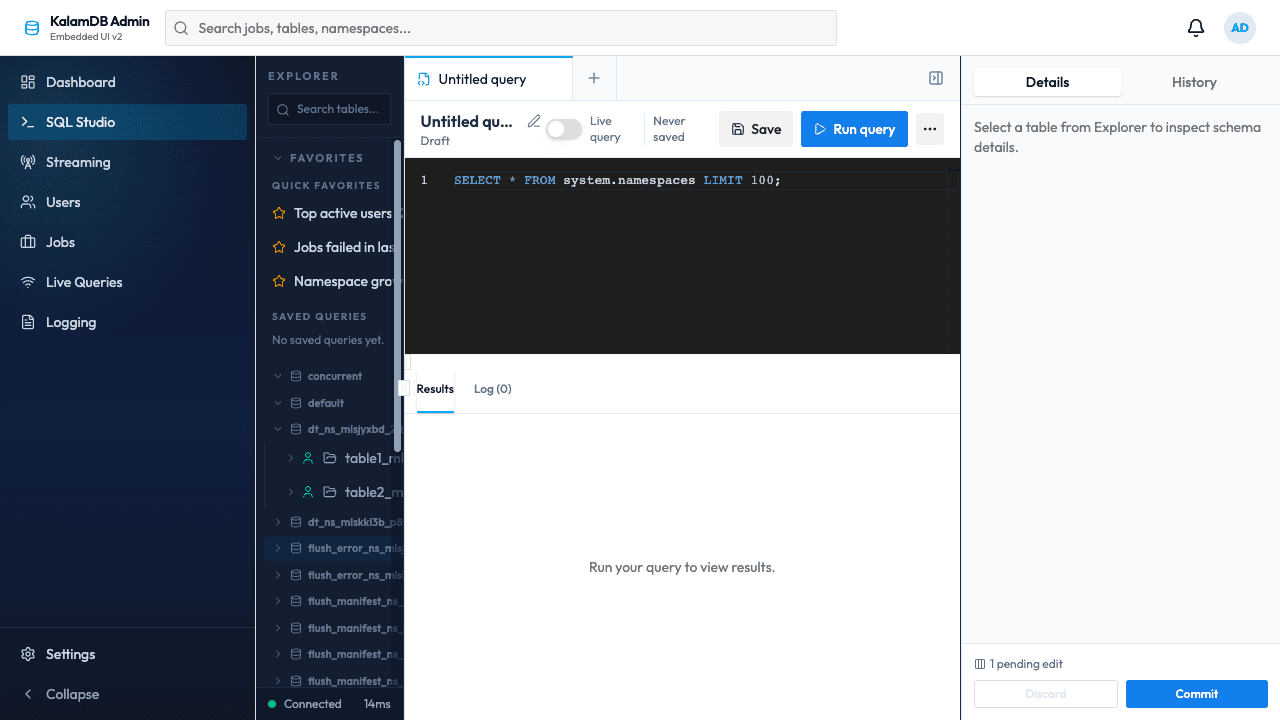

SQL Studio

SQL Studio is the main workspace for querying and inspection:

• Explorer panel for namespaces and tables
• Query tabs for drafting/saving SQL
• Run query execution with result/log tabs
• Details/History side panel for schema and query context

Run your first query

The default editor query is:

SELECT * FROM system.namespaces LIMIT 100;

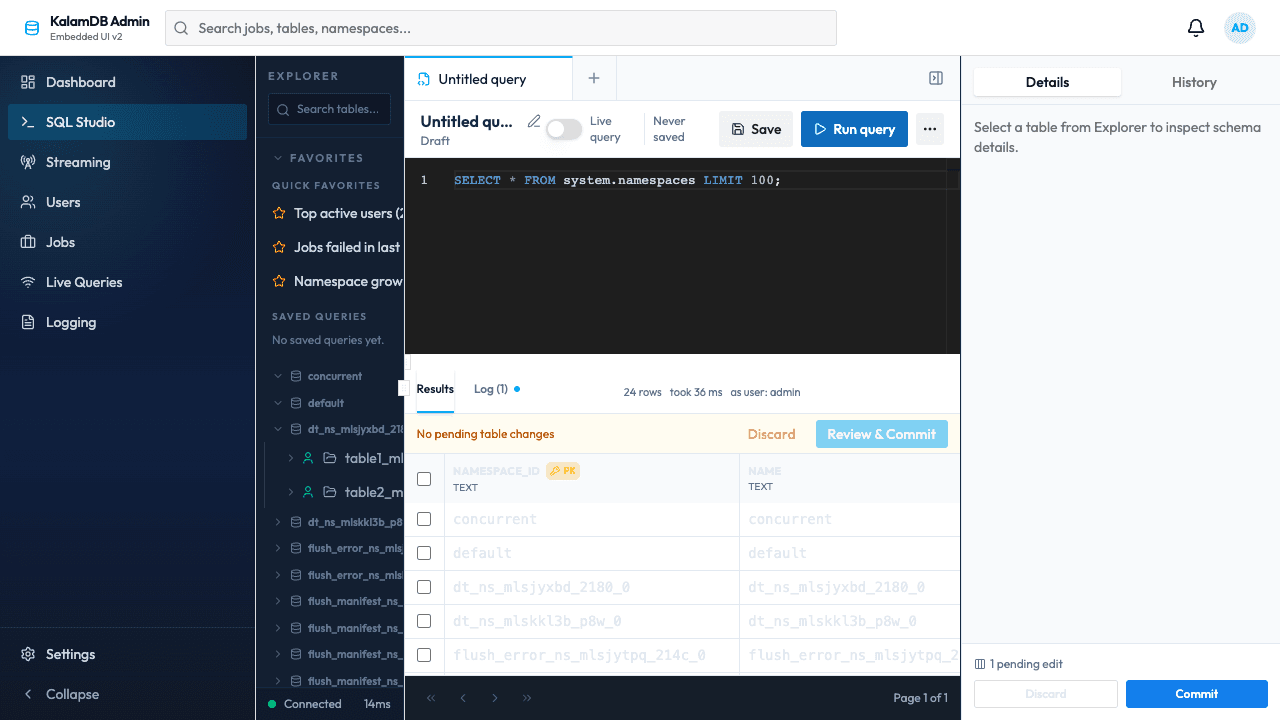

Click Run query to populate the Results tab.

Main navigation areas

The left sidebar exposes these operational areas:

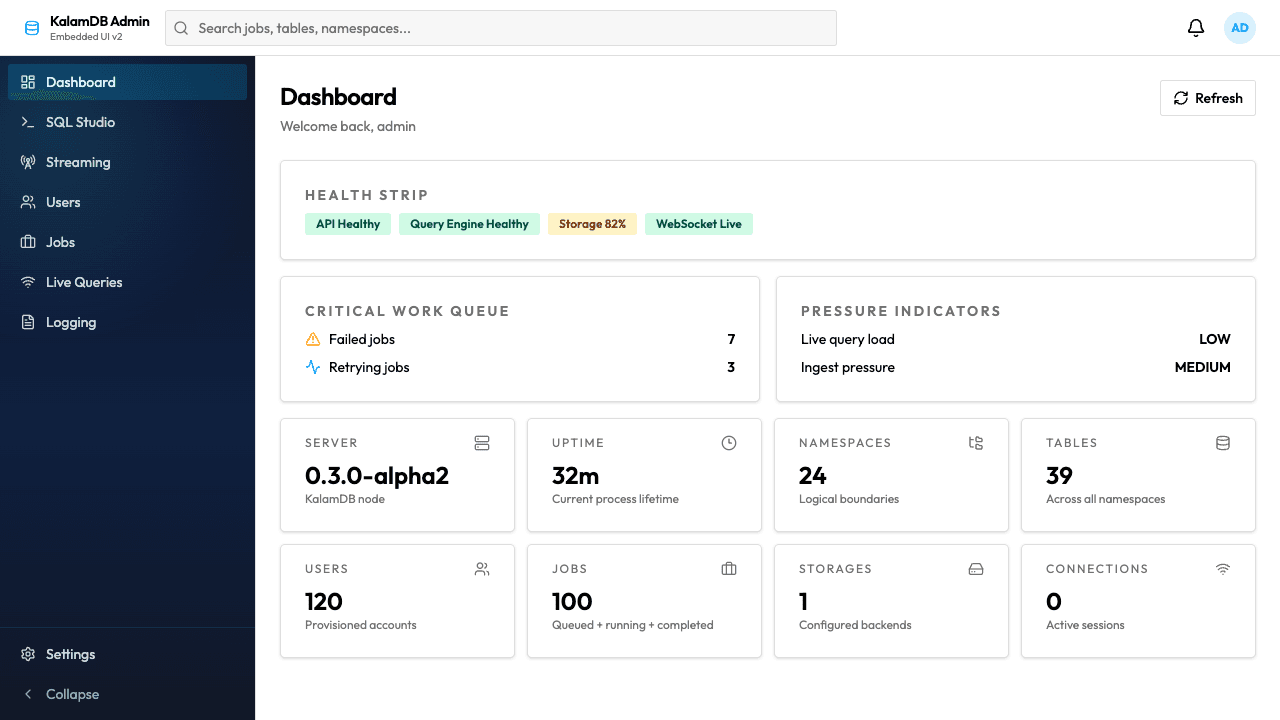

• Dashboard: health strip, queue pressure, and system counts (namespaces, tables, users, jobs, storages, connections).

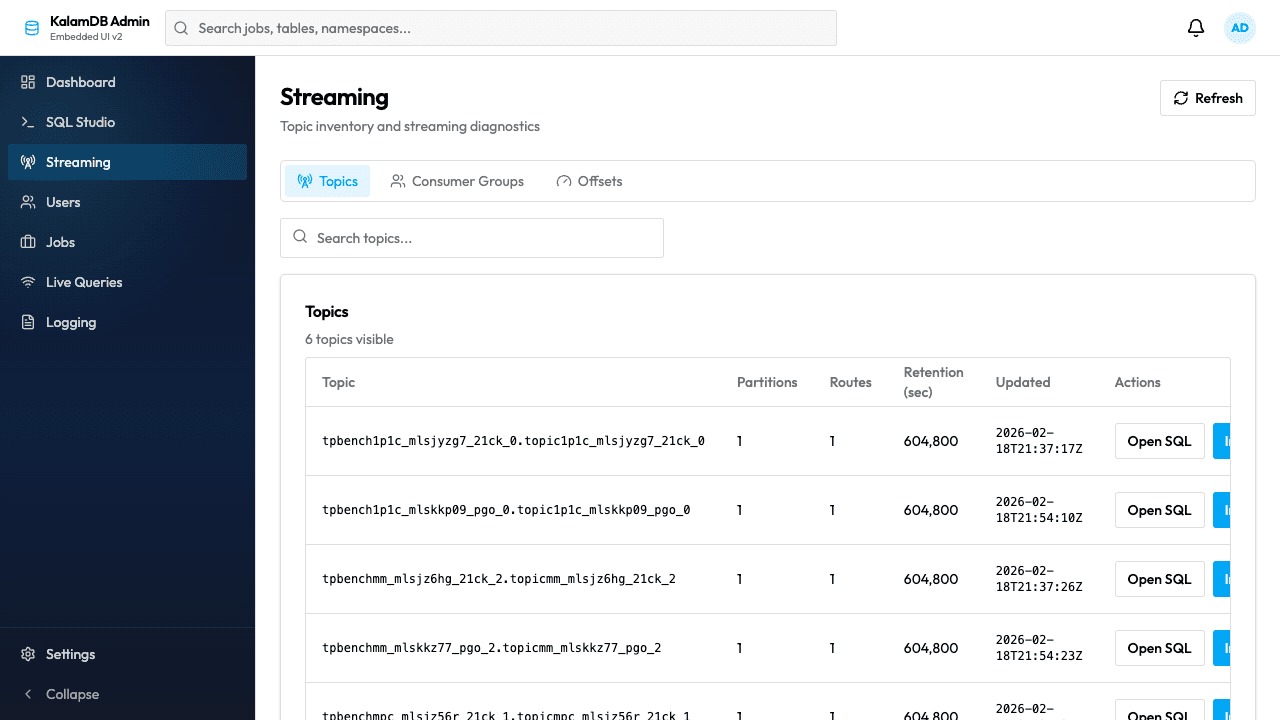

• Streaming: topic inventory and diagnostics, with quick actions like Open SQL and Inspect.

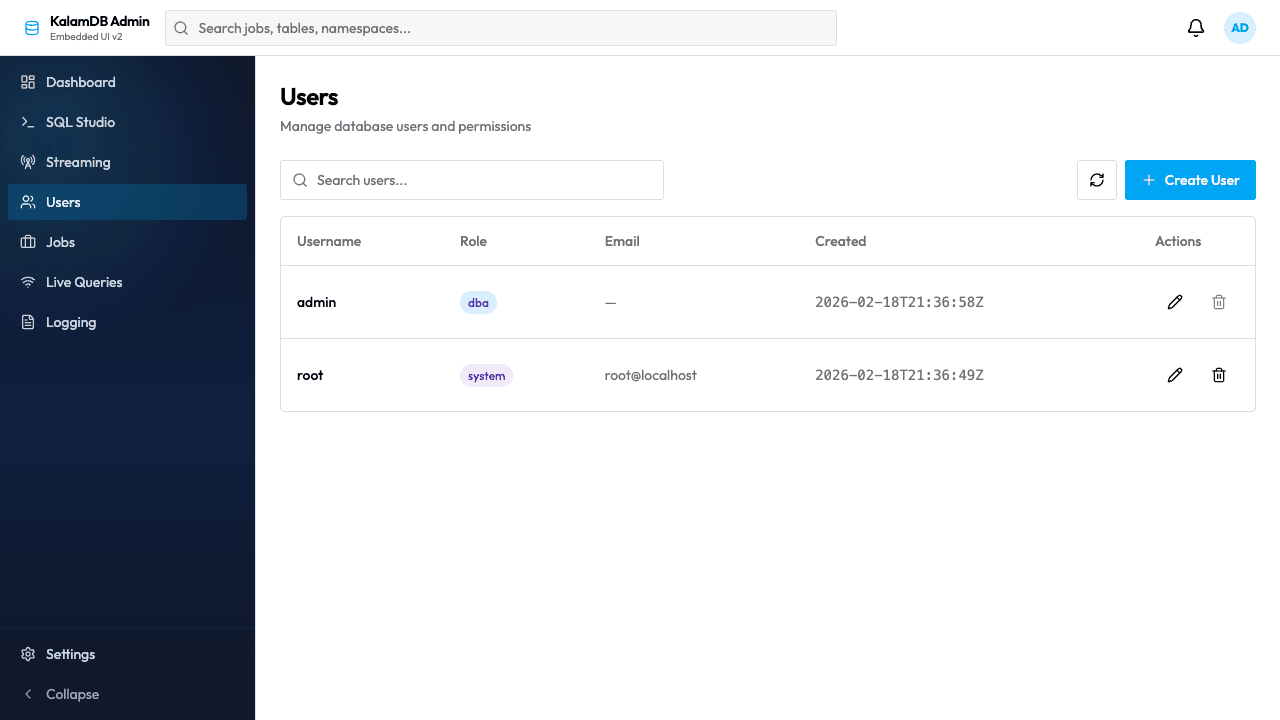

• Users: search users and create new users.

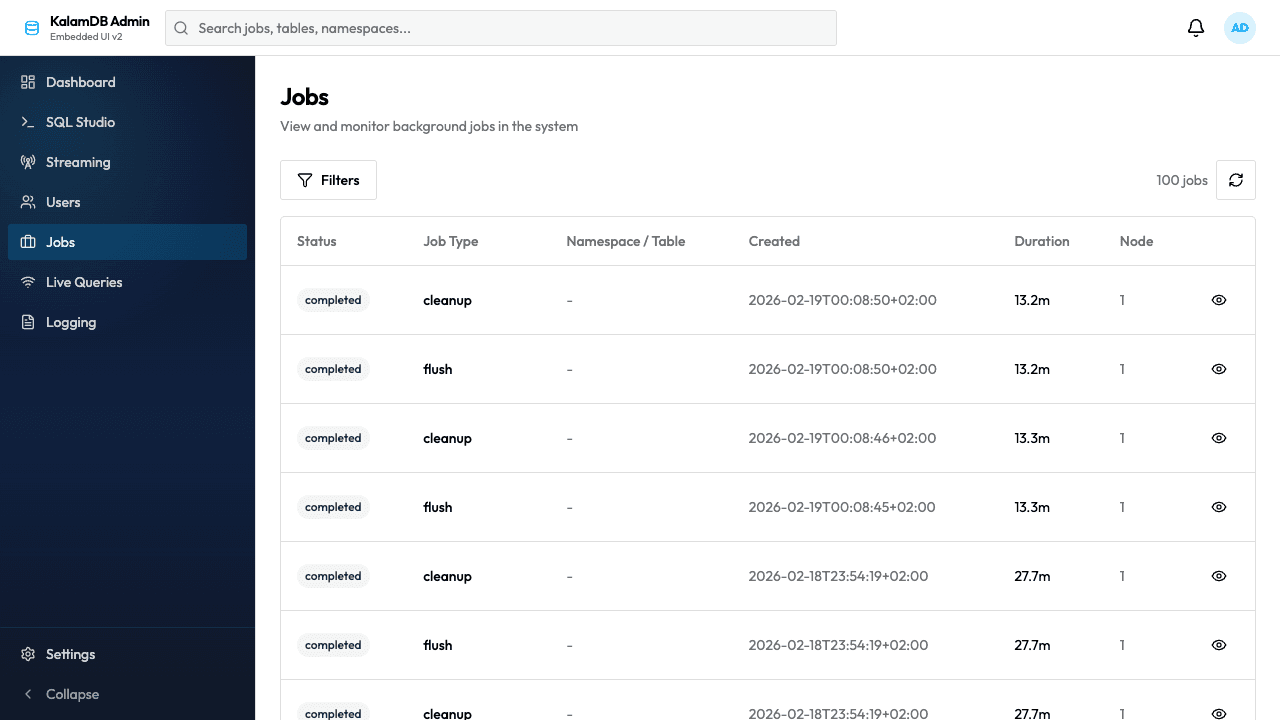

• Jobs: monitor background jobs and apply filters.
• Live Queries: inspect active subscriptions and apply user/namespace/table filters.
• Logging: audit, jobs, and server logs with detail drill-down.

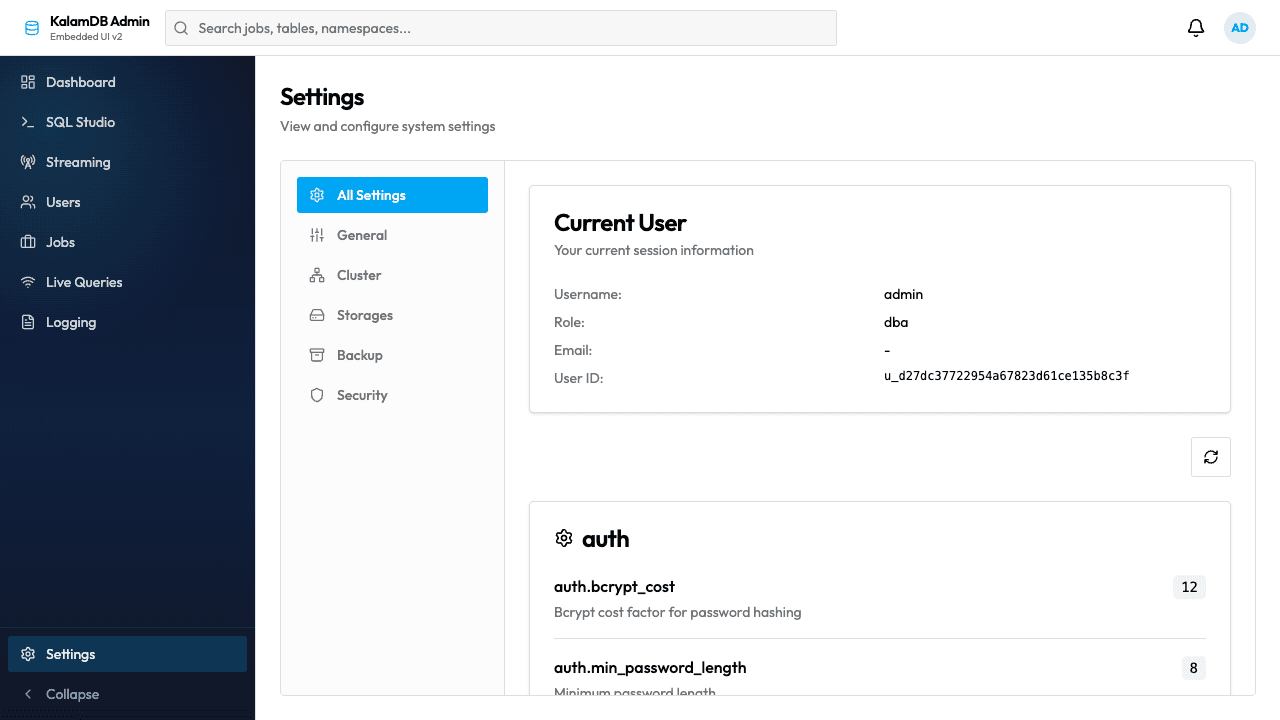

• Settings: view grouped runtime configuration (auth, cluster, limits, logging, storage, websocket, and more).

Practical workflow

1. Validate node health in Dashboard.
2. Run and iterate on SQL in SQL Studio.
3. Check execution and background activity in Jobs and Logging.
4. Review streaming activity in Streaming and Live Queries.
5. Verify configuration in Settings before production changes.
